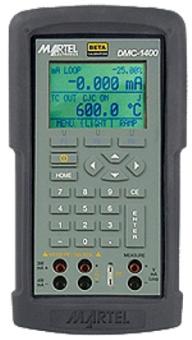

DMC-1400

DMC-1400
The documenting multifunction calibrator is a highly accurate, portable hand-held calibrator providing functions and accuracy associated with fixed installation, laboratory instruments, and has everything needed for virtually any calibration task.

The DMC-1400 Calibrator fully documents any calibration easily while performing the normal job. No special software is required! It features the ability to test for pass/fail criteria, measure and simulate thermocouples, RTDs, current, voltage, and frequency, and source pulse trains.

In addition, the built-in 250 Ohm resistor for HART compatibility with smart transmitters and PLCs, full fuse less protection, and a serial communications port for full control with ASCII commands.

Low Pressure Transducer MP45

* Differential Pressure Ranges: ±2 cm H2O to ±880 cm H2O
* Rugged Stainless Steel Construction
* Low Internal Volume, Small Volumetric Displacement for Fast Dynamic Response
* Ideal for Pulmonary Applications

PTC-8001

고정밀 자동압력발생장치 CPC8000 Series

* 자동압력발생범위 : 0 ... 0.1 ~ 400 bar
* Dual range versions available (-DL/-DX)
* Pressure type: pos. & neg. gauge, absolute pressure
* Control stability: up to 0.001% FS
* Precision: up to 0.004 %
* 측정불확도 : 0.008 % IS* acc. to EA 10/17 (or DKD-R 6-1)

Pressure Transducer DP9

* Ranges from ±0.5 to ±500 psid
* Full scale Low sensitivity to mechanical shock
* Wide dynamic response range
* Withstands extreme pressure overloads
* Accepts corrosive liquids and gases
* High natural frequency

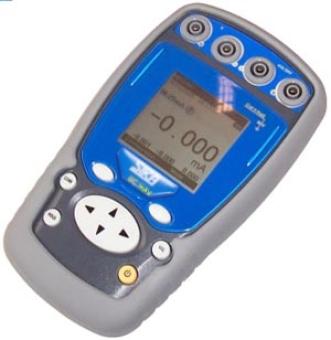

UC-mAV

고정밀 자동압력발생장치 CPC8000H

* 압력발생범위 : 600 / 1000 / 1600 bar
* Pressure medium: Hydraulic oil or water
* Control stability: 0.003 % FS
* Precision: 0.005 %
* 측정불확도 : 0.01 % FS acc. to EA 10/17 (or DKD-R 6-1)

Ultra-Low Pressure센서 P532

* Measures ultra-low differential and gauge pressures from 0.10” H2O full-scale.
* Absolute ranges as low as 0.08 PSIA full-scale
* 4-20 mA or 10-50 mA dc output
* Available in two- and four-wire configurations
* Integral 3 ½ digit liquid crystal local display available
* Field repairable

UC-TC

자동압력발생장치 CPC6000 Series

* 압력발생범위 : 0 ... 0.025 ~ 100 bar (up to 4 sensors possible)
* 압력종류 : gauge, bi-directional, absolute pressure and differential pressure via 2 control channels possible
* Control Stability : up to 0.003 % FS
* 정밀도 : up to 0.005 %
* 측정불확도 : 0.01 % FS acc. to EA 10/17 (or DKD-R 6-1)

Draft Range Transmitter DR800

* Full range as low as 0.25” H2O without turndown or amplification
* Low ambient temperature effects to improve very low measurements
* Selectable resolution on zero and span adjustments to ease critical calibrations
* Integral 3½ digit liquid crystal display available
* 4-20 mA output signal
* Elevation & Suppression offset calibration

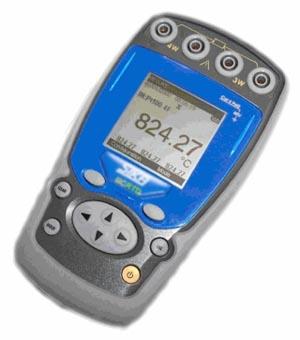

UC-RTD

High-speed압력 발생장치 CPC3000 Series

* 압력발생범위 : 0 ... 0.35 up to 70 bar
* Control Speed: < 3 sec.
* Control stability: up to 0.004% FS
* Precision: up to 0.015 %
* 측정불확도 : 0.025 % FS acc. to EA 10/17 (or DKD-R 6-1)

Strain Gage Output 압력센서 P300

* Ranges as low as ±0.08 psi full scale
* Differential or absolute
* 5 to 12 Vdc Input, 5mV/V Output
* Stainless steel pressure cavities

MC-1200
