350bar / 0.05%FS 유압교정기 PM350 P

Pressure medium distilled water or hydraulic oil
Measuring ranges 0…50, 0…100, 0…250, 0…350 bar
Pressure range of the hand pump 0…350 bar
Display multi-purpose LCD, 20 x 60 mm
Switchable pressure units bar, mbar, PSI, kPa, MPa
Transparency keyboard with six keys
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65 (front) otherwise IP40
PC connection via RS232 interface
Power supply
4 x 1.5 V battery, 8000 h service life continuous operation
LOW-BAT-display, AUTO-OFF
Measuring Range Resolution
Rang Model A Model B
0...50 bar 0.01 bar 0.005 bar
0...100 bar 0.1 bar 0.01 bar
0...250 bar 0.1 0.02 bar
0...350 bar 0.1 bar 0.05 bar

Modell A (+/-0.10 % FS) (for one of the above mentioned pressure range)
Modell B (+/-0.05 % FS) (for one of the above mentioned pressure range)

Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
Calibration & test software incl. data cable WINDOWS

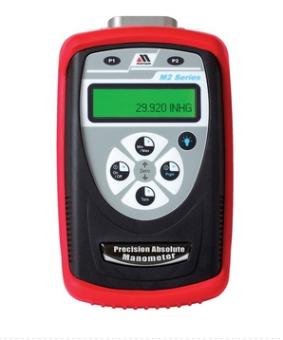

Meriam M202 Absolute Manometer

Precision absolute manometer offers "calibration-bench" accuracy in a portable, handheld unit.

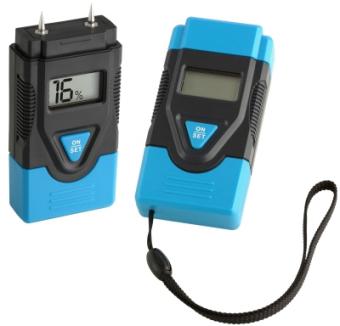

HumidCheck Mini 목재 & 건축자재 수분측정

* 쉬운 사용법
* 건축자재와 목재
* 온도 디스플레이

350bar / 0.05%FS 유압교정기 PM350 P

Pressure medium distilled water or hydraulic oil
Measuring ranges 0…50, 0…100, 0…250, 0…350 bar
Pressure range of the hand pump 0…350 bar
Display multi-purpose LCD, 20 x 60 mm
Switchable pressure units bar, mbar, PSI, kPa, MPa
Transparency keyboard with six keys
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65 (front) otherwise IP40
PC connection via RS232 interface
Power supply
4 x 1.5 V battery, 8000 h service life continuous operation
LOW-BAT-display, AUTO-OFF
Measuring Range Resolution
Rang Model A Model B
0...50 bar 0.01 bar 0.005 bar
0...100 bar 0.1 bar 0.01 bar
0...250 bar 0.1 0.02 bar
0...350 bar 0.1 bar 0.05 bar

Modell A (+/-0.10 % FS) (for one of the above mentioned pressure range)
Modell B (+/-0.05 % FS) (for one of the above mentioned pressure range)

Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
Calibration & test software incl. data cable WINDOWS

Meteorological Thermometer

자동 0 °C 실현장비 TRC

SS Series

350bar / 0.6%FS 유압교정기 PM350_A

Pressure medium distilled water or hydraulic oil
Standard DIN measuring range
Pressure range of the hand pump 0...350 bar
Analogue test gauges D = 100 mm
Pressure units on customer request
Pressure connection over G¼’’ female with pressure hose (1.0 m)
DIN measuring range and resolution
Accuracy 0.6
Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female

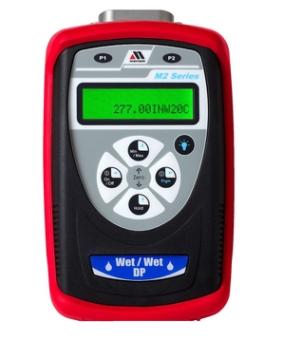

Meriam ZM200-DI Wet/Wet Smart Manometer

Handheld, intrinsically smart-manometer for liquids with high accuracy for wet/wet differential pressure applications

ASTM thermometer

휴대용 0 °C 실현장비 TRCIII-A

Cryo Vaccum Blackbody

350bar / 0.01%FS 유압교정기 PM350 L

Pressure medium distilled water or hydraulic oil
Measuring ranges 0…200, 0…400 bar
Pressure range of the hand pump 0…350 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units
bar, mbar, hPa, PSI, kPa, MPa, PSI, kp/cm², cmH2O, mH2O, inH2O, ftH2O, mmHg, inHg
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
PC connection via RS485 interface
Power supply
3 V battery, 2000 h service life continuous operation
LOW-BAT-display, AUTO-OFF

Measuring range 0…200 – Resolution 0.01 bar
Measuring range 0…400 – Resolution 0.05 bar

Modell A (+/-0.025 % FS) (for one of the above mentioned pressure range)
Modell B (+/-0.01 % FS) (for one of the above mentioned pressure range)
Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X
Calibration & test software incl. data cable WINDOWS

Meteo Station HM30

The use of this Meteo Station provides accurate barometric pressure, humidity, and air temperature.

350bar / 0.01%FS 유압교정기 PM350 L

Pressure medium distilled water or hydraulic oil
Measuring ranges 0…200, 0…400 bar
Pressure range of the hand pump 0…350 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units
bar, mbar, hPa, PSI, kPa, MPa, PSI, kp/cm², cmH2O, mH2O, inH2O, ftH2O, mmHg, inHg
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
PC connection via RS485 interface
Power supply
3 V battery, 2000 h service life continuous operation
LOW-BAT-display, AUTO-OFF

Measuring range 0…200 – Resolution 0.01 bar
Measuring range 0…400 – Resolution 0.05 bar

Modell A (+/-0.025 % FS) (for one of the above mentioned pressure range)
Modell B (+/-0.01 % FS) (for one of the above mentioned pressure range)
Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X
Calibration & test software incl. data cable WINDOWS
