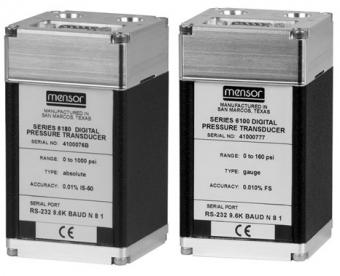

CPT6100, 6180 정밀 압력 센서 / 정확도 0.01%

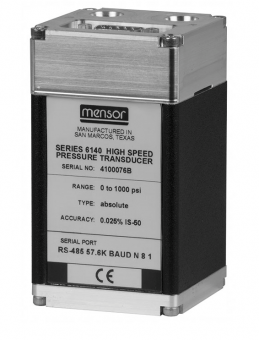

CPT6140 고속 압력 센서 / -1~400bar

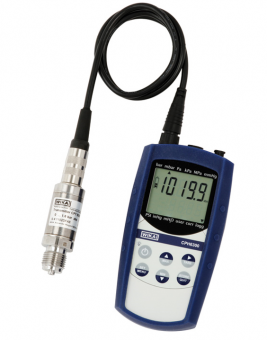

CPH6300 스테인리스 압력 센서 / 0~100mbar, 0~1000bar

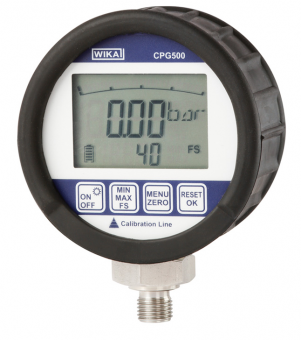

CPG500 디지털 압력계 / -1~16bar, 0~1000bar

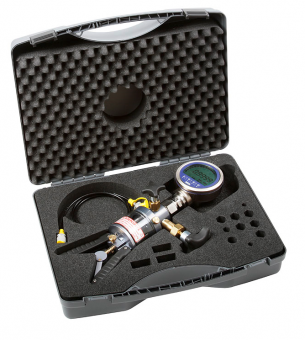

CPG KITP 공압 서비스 키트 / 최대 40bar

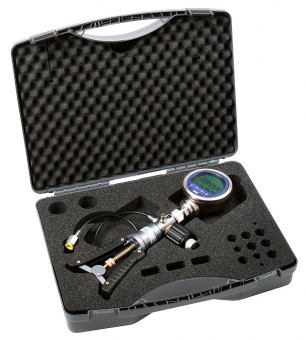

CPG KITH 유압 서비스 키트 / 최대 700bar

Flash III -33...+250°C

Technical Data

Measuring range -33°C...+250°C
Accuracy +-2°C or 2%
Repeatability +-1,0°C or 1%
Display resolution 0,1°C
Response time Appr. 500 ms
Working temperature 0...50°C
Storage temperature -20...50°C
Emissivity 0.01..1.00 adjustable
Distance: Spot size 3 : 1
Power supply 2 x battery cell CR2032
Housing Plastic
Dimensions 139 x 235 x 28 mm
Weight 110 g
Order No. 5020-0556
Features - C°/F°- switchable
- MaxMin-memory
- Automatic Hold
- Lock-mode for continues measurements
- with Laser
- adjustable Emissivity

Mini Flash -33°C...+220°C

Technical Data
Measuring range -33°C...+220°C
Accuracy +-1,5°C or 1,5% 0...50°C,
otherwise +-2°C or 2%
Repeatability +-1,0°C or 1%
Display resolution 0,1°C
Response time Appr. 500 ms
Working temperature 0...50°C
Storage temperature -20...50°C
Emissivity 0.95 fix
Distance: Spot size 1,3 : 1
Power supply 1 x battery cell CR2032
Housing Plastic
Dimensions 68 x 37 x 18 mm
Weight 25g
Order No. 5020-0414
Features - C°/F°- switchable
- MaxMin-memory
- Automatic Hold
- Lock-mode for continues measurements

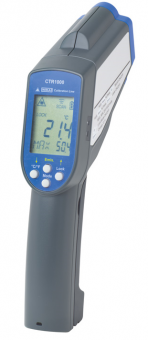

CTR1000 휴대용 적외선 온도계 / -60~1000℃

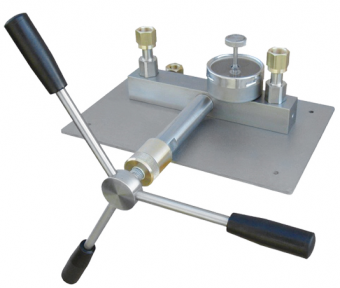

Type P700.G2 0~700bar

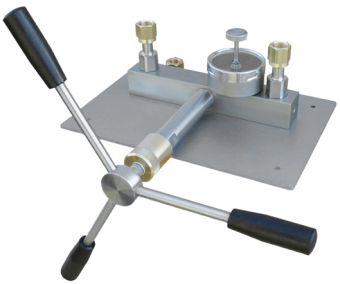

Type P700.GW 0~700bar

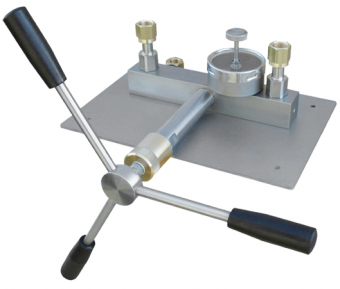

Type P1000.GW 0~1000bar

Type P1400.G 0~1400bar

40bar / 0.1%FS 공압교정기 PM40_D

Pressure medium air
Measuring range -1…(30)40 bar
Pressure range of the hand pump -1(-950 mbar)…40 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units bar, mbar/hPa, PSI, kPa, MPa, kg/cm²
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
Power supply
3 V battery, 1400 h service life continuous operation
LOW-BAT-display, AUTO-OFF
Measuring rang -1…(30)40 bar – Resolution 0.01 bar
Accuracy -0.1 % FS +/-1 digit
Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G¼“, G⅜’’, G½’’
NPT⅛’’, NPT¼“, NPT½’’
M12x1.5, M20x1.5
double fitting G⅛’’A and G¼“A
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X

700bar / 0.1%FS 유압교정기 PM700 D

Pressure medium distilled water or hydraulic oil
Measuring range 0…700 bar
Pressure range of the hand pump 0…700 bar
Display multi-purpose LCD, 30 x 30 mm
Switchable pressure units bar, mbar/hPa, PSI, kPa, MPa, kg/cm²
Function keys ‘SELECT’ (reset, off, zero, cont) ‘ENTER’
Pressure connection over G¼’’ female with pressure hose (1.0 m)
Protection class IP65
Power supply
3 V battery, 1400 h service life continuous operation
LOW-BAT-display, AUTO-OFF


Measuring range 0…700 bar – Resolution 0.2 bar
Accuracy -0.1 % FS +/-1 digit


Add. case, flexible pressure hose and set of seals
Set of adapter
G⅛’’, G⅜’’, G½’’, G¼“ female
G⅛’’ and G¼“ male
Extra charge EEx ia IIC T5/T6 – 01ATEX6001X
