XL421

XL421 it’s a meter of a new Data Logger family, which also included XL422, XL423 and XL424 models, that performing measure and recording of TRMS AC current up to 2500A in a generic single phase system. Its can be very useful for various applications (i.e evaluation of load consumption, verification of nominal power of transformer, etc...). Instrument is contained in a safety and practice case with a built-in flexible clamp which permits to clamp-on wide dimensions cable or bar. Thanks to a sophisticated memory algorithm the instruments are able to record for a very long time up to about 1 year. Use is very simply thanks presence of short indication on the case instrument also. With TOPVIEW2004 Windows software, supplied with the model, its possible to downloading and analyzing all recorded data directly on PC. The high protection degree (IP65) makes the instrument reliable and suitable also under extreme condition of use.

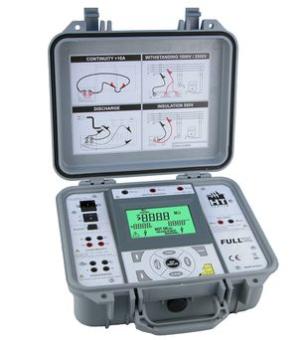

FULLTEST4058N

FULLTEST4058N model is designed to perform essential tests in industrial environments on electrical machines devices and partially type-tested assemblies (PTTA) in compliance with IEC/EN60204-1:2006 and IEC/EN60439-1 respectively. The meter principally performing continuity test on potential equalising conductors with >10AAC test current, insulation resistance with 500VDC test voltage and withstanding tests with 1000AC test voltage (for electrical machine devices) and 2500V test voltage (for individual test on PTTA assemblies switchboards). Withstanding test is performed also in BURN mode with no limits on trip-out current. Discharging time measures of internal capacitance and on external plugs of device under test complete the list of possible test with this meter.

The new release 2006 of IEC/EN60204-1 standard included a different way to perform the continuity test on protection conductors and now the limit threshold of resistance depends on also by values of Loop P-PE impedance of the power source and from the type of protection (typically magnothermic) which are mounted on the installations. Based on this, the meter can be connected with the IMP57 optional accessory to perform the Loop impedance (with high resolution 0.1mOhm) and defined automatically the limit threshold according to the standard avoid complex calculations to the final user. As FULLTEST4050 more advanced model also FULLTEST4058N have a built-in internal memory to save all measurement results and a RS-232 PC’s interface for directly transfer of saved tests by dedicated Windows software. The model is fitted inside a practical and protected plastic case board with no flammability and a membrane keyboard for rapid selection of functions is included on the frontal panel together a wide custom display. FULLTEST4058N is the ideal solution for any kind of verifier and/or industrial installer to performing easily and rapid test on industrial appliances

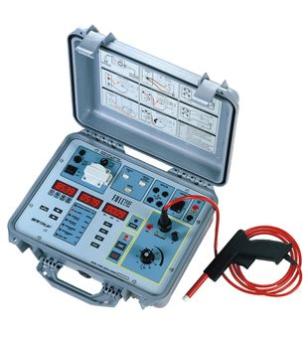

FULLTEST4050

FULLTEST4050 model was designed to perform all necessary safety tests in industrial environments on electrical machines, devices and type-tested assemblies (TTA) or partially type-tested assemblies (PTTA) in compliance with IEC/EN60204-1:2006 and IEC/EN60439-1 respectively. The flexibility of meter permits to perform also partial test according to any other standards. The instrument principally performing continuity test on potential equalising conductors with >10AAC test current, Insulation Resistance with 500VDC test voltage and Withstanding tests with up to 4000VAC. Other tests are discharging time of internal capacitance and leakage current measurements directly on plug of device under test.

The new release 2006 of IEC/EN60204-1 standard included a different way to perform the continuity test on protection conductors and now the limit threshold of resistance depends on also by values of Loop Phase-PE impedance of the power source and from the type of protection (typically magnetothermic) which are mounted on the installations. Based on this, the meter can be connected with the IMP57 optional accessory to perform the Loop impedance (with high resolution 0.1mOhm) and defined automatically the limit threshold according to the standard avoid complex calculations to the final user

FULLTEST4050 have a built-in internal memory to save all measurement results and a RS-232 PC’s interface for directly transfer of saved tests by dedicated Windows software. The model is fitted inside a practical and protected plastic case board with no flammability and a membrane keyboard for rapid selection of functions is present on the frontal panel

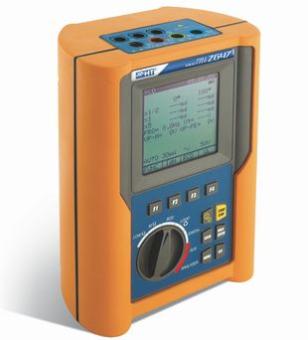

ZG47

The innovative ZG47 model is another great evolution of HT ITALIA in the field of multifunctional meter dedicated to safety test verifies on civil and industrial electric plants in compliance with IEC 60364 IEC/EN61557-1 and VDE0100 standards and for complete power quality analysis in Single and Three phase systems. ZG47, more than the typical optical/serial/USB interface, can be connected also to PC device with Bluetooth protocol included in order to transfer data in remote way with the specified distance of this kind of protocol. This is possible thanks to the acknowledgement by the meter of a special remote unit (optional accessory C2008) connected to it and programmed in properly mode. In this way is possible the data transfer of data inside memory also with meter do not strictly connected to PC

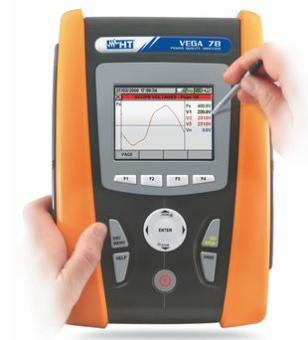

VEGA78

Thanks to an innovative development, the instrument VEGA78 allow carrying out analysis and tests on single-phase and three-phase electric systems with and without neutral. The instrument display in real time the values of all fundamental electric quantities which characterize the electric system being tested (voltage, current, active power, reactive power, apparent power, power factor, etc.), showing the waveforms of voltages and currents. VEGA78 is used for testing and analysing the quality of the electric service provided by the Electric Power Supplier, for analysing single-phase and three-phase electric users such as offices and industries, when diagnosing voltage anomalies by taking advantage of the possibility of recording electric quantities. The instrument also allows evaluating the harmonic content introduced by non-linear loads such as computers, TV sets, controlled electric motors, etc. which can cause the RCD’s tripping or a neutral overheating. The instrument are supplied with the PC management software, which further expands the analysis possibilities of the data acquired

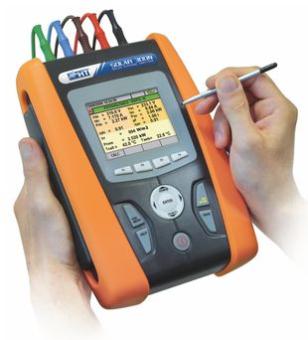

SOLAR300N

SOLAR300N allows carrying out all tests required for the verification of the efficiency of single-phase and three-phase photovoltaic systems. Testing photovoltaic systems requires contemporarily measuring environmental parameters (incident irradiation of modules, temperature of environment and modules) and electric parameters (continuous power, alternating power, etc.).

Typically, modules and inverter can be positioned even at several tens of meters of distance, thus forcing the operator to carry out measurements in different places far from each other at the same time. To carry out these operations, connections by means of long cables or (wireless) radio connections could be necessary, but both these solutions are not acceptable. Cables could hamper the operator’s movements or be a hindrance, while radio waves would be attenuated by floors, reinforced concrete or metal structures, thus making communication impossible.
In order to avoid the above-mentioned problems and to carry out measurements with the necessary contemporaneity, SOLAR300N is provided with a remote unit, synchronized with the main unit. The remote unit is positioned next to the photovoltaic modules and it is connected to the probes for measuring environmental parameters (irradiation and temperature). SOLAR300N is connected upstream and downstream of the inverter in order to acquire the electric parameters (continuous power and alternating power). The synchronization between the two units guarantees the necessary contemporaneity of measurements, the two separate and independent units make measurements comfortable and safe.

SOLAR300N is also a powerful instrument for the complete analysis of mains quality in compliance with standard EN50160 (harmonic analysis, analysis of voltage anomalies, Flicker, unbalance, etc.). The management software TopView also provides the possibility of creating professional reports, which can be customized by adding the company’s logo, the customer’s data, comments, etc.

SIRIUS89N

SIRIUS89N is a complete model to perform all tests according to VDE 0413, it measures the environmental parameters and analyses the network power quality of single phase and three phases balanced systems. RCDs which suddenly trip out, transformers which overheat, motors which burn out, voltage sags and surges which create problems, all these problems could be easily solved with SIRIUS89N. This instrument integrates the possibility to perform the loop impedance measurement at high resolution (0.1mOhm) with the use of IMP57 (optional accessory) and some predefined recording settings to help the user on the most common recordings of the network parameters. SIRIUS89N can perform current measurements up to 3000A AC also by using a flexible clamp. This is a very important feature which permits to perform measurements on big cables or bars also. Thanks to the PC interface and the powerful software you will create accurate documents qualifying your professionalism more and more

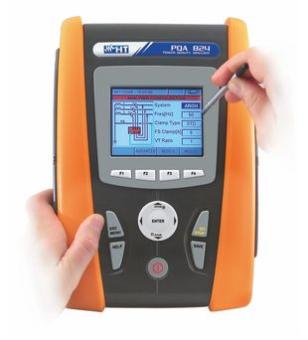

PQA824

The PQA824 model, completely designed in Windows CE technology, permits an easy and wide fast analysis of a huge quantity of data any other system. Thanks to an innovative design and a graphic colour TFT "touch screen" wide display these models finally meet all requests from any exigent electrical verifier. The interface it's incredible "user-friendly" due to the intuitive icon selection of any kind of feature and a contextual help it's available for each screen. Each internal parameter it's easy to reach for effect of typical Windows tree structure.
The model permits the visualization of all parameters both in numeric and graphical mode with large use of waveforms and histograms (for harmonic analysis) screens. The vectorial diagram feature permit also to evaluate the mutual phase angle between voltages and current in order to understand the nature inductive or capacitive of the loads on an installation.
PQA824 have a great internal memory (15Mbytes) in order to save recording results for a lot of parameters (e.g: >3 weeks for 251 parameters and integrated period of 15 minutes), but this memory can be expanded by using of external compact flash cards fitted on meters. Pen drives USB connection it's also available in order to transfer recordings from meter and realize a practical and sure portable situation of all date. PQA824 meter are powered by a internal rechargeable Li-Ion battery which permits complete operation for more than 3 hours and are external supplied by using a 100/240V AC adaptor. USB interface permits the connection with PC for download and analysis of recordings with dedicated TOPVIEW Windows software
The PQA824 model also permits detection of fast voltage transients (spikes) with a minimum resolution of 5us (200kHz) with setting of different trigger thresholds very useful on troubleshooting problems on industrial installations (monitoring atmospheric discharging, analysis of switching problems, frequency noise, etc..).

HT9022

HT9022 is a combination of a power quality analyzer, a phase sequence/conformity detector, a clamp meter and a voltage detector in one single handy device. The advanced design of HT9022 ensures reliable and accurate measurements under a wide range of operating conditions. HT9022 is the ideal instrument for troubleshooting power quality problems, calculating power factor correctors, recording energy consumption, recording DC power, etc. Unlike the data loggers that take snapshots of the electrical parameters in regular intervals, losing what happens between an interval and the next, HT9022 continuously records all electrical parameters as a true power quality analyzer. The internal memory enables long-term recording for further download to (and analysis at) a PC, a PDA or a smartphone via Bluetooth connection. HT9022 is flexible and portable to grant the user the most reliable measurements with an easy-to-use interface

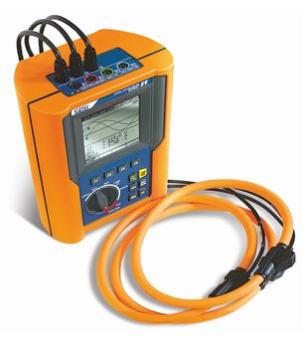

GSC57

GSC57 is the most complete model of the entire meters designed to verifies both on electrical installations according to IEC61557, BS7671, VDE0100 and power quality on generic three phase systems. Flexibility of this meter consents using by installers, technicians, engineers and testers of electrical plants and equipment. GSC57 performs, from the other things, a fault Loop Impedance with high resolution (0.1 mOhm) nearly power transformer thanks use of IMP57 optional accessory. As logger meter, GSC57 can recording all values of electrical parameters (Voltages, Currents, Powers, Power Factory, Energies, etc.), performing harmonic analysis of Voltages and Currents (up to 49-th order) and consents a supply voltages quality analysis (sags, spikes, breaks). With optional probes GSC57 can also performing measures and recordings of environmental parameters as Temperature, Humidity, Illumination (Lux), Sound Level and Leakage currents very important for troubleshooting problem of RCDs wrong tripping. Each measure can stored inside instrument memory, recalled on instrument display and transferred to PC using the management standard software in way to create a professional relation which will improve the quality of work

GSC53N

GSC53N is a strong evolution equipment to perform complete test and verify on electrical installations according to the most common safety standards (IEC 61557, VDE 0100, BS7671) and for power quality analysis on general electric networks. This meter, sure, with high accuracy, dedicated to each proof technicians is a very user-friendly instrument thanks to the new integrated features as the setting up to 5 predefined recordings on power quality (EN50160, Voltage Anomalies, Harmonics, Start-up and Power & Energies) for a easier and rapid analysis of the most common situation on plants, the use of flexible clamp transducers with integrated control logic. In this way disappear the problem of replace batteries of power adaptor typical of transducers with external control logic. GSC53N model can perform Line/Loop impedance and prospective short circuit current measurements with high resolution (0.1mOhm) with use of IMP57 optional accessory. In this way is possible realize important measures strictly nearly to power transformer

ZG47

The innovative ZG47 model is another great evolution of HT ITALIA in the field of multifunctional meter dedicated to safety test verifies on civil and industrial electric plants in compliance with IEC 60364 IEC/EN61557-1 and VDE0100 standards and for complete power quality analysis in Single and Three phase systems. ZG47, more than the typical optical/serial/USB interface, can be connected also to PC device with Bluetooth protocol included in order to transfer data in remote way with the specified distance of this kind of protocol. This is possible thanks to the acknowledgement by the meter of a special remote unit (optional accessory C2008) connected to it and programmed in properly mode. In this way is possible the data transfer of data inside memory also with meter do not strictly connected to PC

T2000

The T2000 model is designed for the resistance measurement on earth probes with ground loop method without the disconnection of parts of plants under test. This type of measurement carried out by the instrument can be used for evaluation of single rods’ resistances within an earth installation assuming they do not affect each other. The inner part of the instrument is made of 2 toroids one for current and one for voltage. The voltage toroid generates a potential (E) on the loop during resistance measurement. A current (I) is consequently generated on the loop and is measured by the current jaws. Based on the value of parameters E and I the instrument displays the resistance value R calculated as their ratio. The T2000 clamp also performs AC current up to 20A and leakage current with 0.05mA resolution and the setting of alarm thresholds on measurements is possible. The instrument is compliance with IEC/EN61010-1, CAT III 150V and is ideal for simple measurements both in domestic and industrial environments

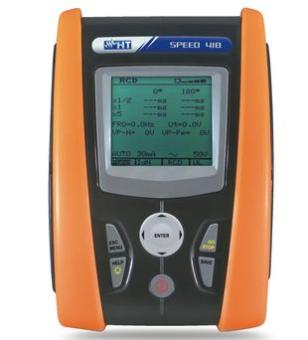

SPEED418

SPEED418 is an innovative meter designed to perform Global Earth Resistance test without RCDs' tripping directly on sockets and all RCDs' trip out time and trop out current tests with automatic and manual modes on civil electrical installations in compliance to recently standards (VDE0100, BS7671 etc..). Another important test concerning the Loop impedance measurements with high resolution (0.1mOhm) (with IMP57 optional accessory) is performed by meter. The meter it's very easy to use and thanks to newest electronic function selector it have an extreme rugged structure for perfect using on field".The instrument permits, moreover, to start principal measures by using a special remote prove (PR400 optional accessory) particular useful to perform tests in very quickly mode. A contextual help menu selectable by user it's available for each measurement function and permits a valid information during connection of meter to the installation.. A wide internal memory permits the saving of any measurements and the transfer to PC by serial port with dedicated software it's possible. Each measure it's saved with all the sub-results and test parameters with up to two ID locators (selectable by user on meter) in order to reach the exact point where the measure was performed.

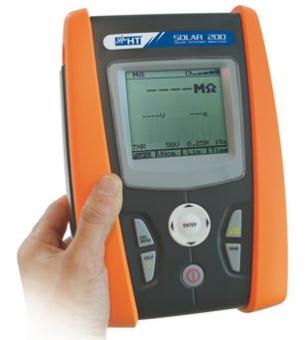

SOLAR200

SOLAR200 is an innovative instrument designed for carrying out electrical safety verifications on photovoltaic systems in compliance with the relevant safety requirements. The instrument is very easy to use and has a wide range of functions which can be selected by means of the simple multi-language menu. Measurements can be started both by pressing the button located on the instrument body and by pressing the button located on the remote probe (optional accessory PR400) which makes carrying out more measurements in sequence very simple. The help on line, which can be selected by the user and is active for any function, is a valid support for the connection of the instrument to the system to be tested. SOLAR200 is provided with an internal memory and an optical/USB interface for PC connection and for transferring measured data, which can be analysed with the dedicated software.
