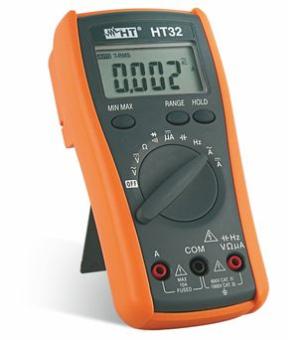

HT32

HT32 model perform basically AC/DC TRMS voltage measurements DC/AC TRMS current measurements in totally autorange. The instrument is designed for achieve CAT III 1000V and CAT IV 600V, with Class 2 protection (double insulation), according to EN 61010-1 safety Standard and have a internal fuse protection on input current. HT32 is fitted in a rubber holster for protection by hurts and a practical support for easy to use in horizontal position. HT32 meter have a large LCD 4 digit display (6000 counts) and each measurement function can be selected with a rotate selector at 10 positions. Other features are MAX and MIN measurements, HOLD function and manual range selection. An Auto Power Off function is integrated to preserve the internal battery after 10 minutes of idleness

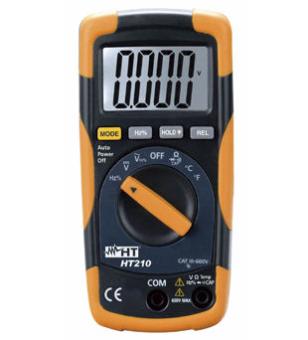

HT210

HT210 model is a compact digital multimeter in complete autorange designed to perform basically voltage AC/DC measurements up to 600V, more than resistance, continuity test, diode test, frequency, capacitance, duty cycle and temperature with type K probe as sub-features. The meter is in compliance with IEC/EN 61010-1 safety standard with double insulation protection in CAT III 600V. HT210 have a large LCD backlight display and each measurement function can be selected with a rotative selector at 7 positions. Other features are HOLD function and REL for relative measurement. An AutoPowerOff function is integrated to preserve the internal battery after 30 minutes of idleness

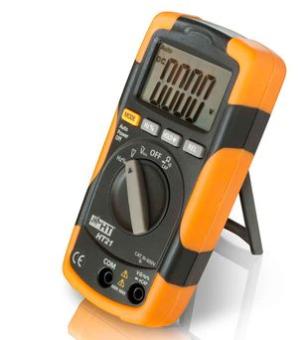

HT21

HT21 model is a compact digital multimeter in complete autorange designed to perform basically voltage AC/DC measurements up to 600V, more than resistance, continuity test, diode test, frequency, capacitance and duty cycle. The meter is in compliance with IEC/EN 61010-1 safety standard with double insulation protection in CAT III 600V. HT210 have a large LCD backlight display and each measurement function can be selected with a rotative selector at 5 positions. Other features are HOLD function and REL for relative measurement. An AutoPowerOff function is integrated to preserve the internal battery after 30 minutes of idleness

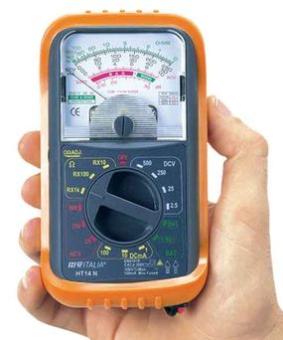

HT14N

HT14N model is an analogue multimeter with compact dimensions, it can measures Dc and AC voltage up to 500V, resistance up to 2MOhm and battery test. Very good legibility of the analogical scale and sheath anti-collision

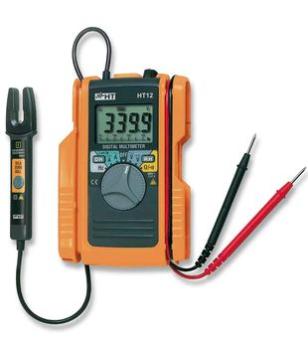

HT12

HT12 model is a compact digital pocket size multimeter designed to perform voltage AC/DC measurements up to 600V, current AC/DC measurements up to 60A with integrated fork sensor more than resistance, continuity test and frequency as sub-features. The meter is in compliance with IEC/EN61010-1 safety standard with double insulation protection in CAT III 300V, CAT II 600V. Other features are Data HOLD function and Auto Power OFF function after 10 minutes of idleness. The instrument is fitted inside a protection holster which is used also to include the test leads

HT82

HT82 model is a digital portable meter to perform the phase sequence indication measurement by connecting the standard test leads on L1, L2 and L3 phases of a generic three phase system. The meter shows the “R” indication in positive test and “L” indication in the opposite case. An acknowledgement of wrong cable connection it’s also detectable by meter

HT712

HT712 is a professional and innovative multimeter designed for electrical installation sector to fully satisfy the “on field” operator requests as accuracy, easy to use handling and reduced dimensions thanks to particular narrow and long sizes. This meter performs Voltage AC/DC measurements in Autorange up to 600V, Frequency, Resistance and Continuity Test. AC Voltage measures can be performed also with patented 1-wire system which permit easy measurements with one hand only. HT712 also performs 1-wire Phase Sequence and Phase Conformity test using Red test lead on the upper part and simply touch the insulated part of wire. In this way the Green or Red LED give the positive (OK) or negative (FAIL) result of test. HT712 is designed for pollution degree 2 environment, according to EN 61010-1 with CAT IV 600V

HT710

HT710 performs Voltage AC/DC measurements in Autorange up to 600V, Frequency, Resistance, Continuity Test and Diode test. Other features are Data HOLD, manual Range, Relative measurement and AutoPowerOFF feature to preserve life of internal batteries. HT710 is designed for pollution degree 2 environment, according to EN 61010-1 with CAT IV 600V

HT70

The HT70 pen voltage detector permits both to quickly verify the presence of AC voltage on any type of electrical installation (sockets, cables, fuses, switchboards, etc.) with and without direct contact and also to perform phase sequence indication and conformity test on generic three phase plants by using red and green fixed and blinking LED indications. HT70 is designed according to IEC/EN61010-1 safety standard in CAT IV 1000V

HT5

HT5 is a practical portable instrument which performs quick tests on low pressure gas lamps and high pressure sodium vapor lamps simply touching the lamp’s surface. Other available features are AC voltage detector, continuity test and diode test

HT20

The HT20 pen voltage detector permits to quickly verify the presence of AC voltage on any type of electrical installation (sockets, cables, fuses, switchboards, etc.) with and without direct contact. A red LED light on and a beeper detect the voltage. The meter have also with a white LED torch very useful for use in dark environments. HT20 is designed according to IEC/EN61010-1 safety standard in CAT IV 1000V

HT191

HT191 model it is the natural evolution of multimeter instrument and it’s designed for electrical installation sector to fully satisfy the “on field” operator requests like accuracy, easy to use and handling and reduced dimensions. This instrument can execute Voltage TRMS measure, automatic detection of AC/DC voltage, Frequency, Resistance and Test Continuity. An innovative feature of H191 model it is the execution of tests with ONE HAND only, without use, typical of multimeters, of any other test lead except the integrated test lead. In this way are possible simple and fast Voltage and Frequency measures with only contact of integrated lest on cable. This feature execute and enhance the function of common “phase detection meter”.
Other new (patented) features of HT191 instrument are the phase rotation detection and the phase coincidence measure (fundamentally important on correctly connection of two different three phase systems). In these cases the meter can perform test with integrated test lead only, directly with contact also on insulation part of cables. HT191 meter is the optimum for any installer, industrial switchboards constructors and for each operator who find an instrument to execute safety and fast measures

XL424

XL424 it’s a meter of a new Data Logger family, which also included XL421, XL422 and XL423 models, that performing measure and recording of TRMS AC Voltage up to 600V in a generic three phase 3-wire system. Its can be very useful for various applications (i.e evaluation of network voltages, unbalanced loads, etc...). Instrument is contained in a safety and practice case with a built-in test leads and safety alligator clips for voltage measurements. Thanks to a sophisticated memory algorithm the instruments are able to record for a very long time up to about 90 days. Use is very simply thanks presence of short indication on the case instrument also. With TOPVIEW2004 Windows software, supplied with the model, its possible to downloading and analyzing all recorded data directly on PC. The high protection degree (IP65) makes the instrument reliable and suitable also under extreme condition of use

XL423

XL423 it’s a meter of a new Data Logger family which performs measure and recording of TRMS AC Voltage up to 600V in a generic single phase system. Its can be very useful for various applications (i.e evaluation of network voltages, unbalanced loads, etc...). Instrument is contained in a safety and practice case with a built-in test leads and safety alligator clips for voltage measurements. Thanks to a sophisticated memory algorithm the instruments are able to record for a very long time up to about 1 year. Use is very simply thanks presence of short indication on the case instrument also. With TOPVIEW2004 Windows software, supplied with the model, its possible to downloading and analyzing all recorded data directly on PC. The high protection degree (IP65) makes the instrument reliable and suitable also under extreme condition of use.

XL422

XL422 it’s a meter of a new Data Logger family, which perform measure and recording of TRMS AC current up to 2500A in a generic three phase 3-wire system. Its can be very useful for various applications (i.e evaluation of load consumption, verification of nominal power of transformer, etc...). Instrument is contained in a safety and practice case with three built-in flexible clamps which permits to clamp-on wide dimensions cables or bars. Thanks to a sophisticated memory algorithm the instruments are able to record for a very long time up to about 1 year. Use is very simply thanks presence of short indication on the case instrument also. With TOPVIEW2004 Windows software, supplied with the model, its possible to downloading and analyzing all recorded data directly on PC. The high protection degree (IP65) makes the instrument reliable and suitable also under extreme condition of use.
